又到暴雨潮湿季节了,广西顶博发电机组制造进水该怎么办?

2021-07-31
来源: 原创
10631
当梅雨季节或鼓风机季来暂时,有有将会遇到大水、强降水等大灾害性的干扰,因柴油发动机机发并网发电量超临界锅炉超临界锅炉IDC机房一般来说是在地下隧道室也可以1楼特别容易被水淹,倘若发并网发电量超临界锅炉超临界锅炉储放或许防护不当也可以别其原因水有有将会从烟管流入汽车发行为缸体。当柴油发动机机发并网发电量超临界锅炉超临界锅炉泡水时,当在转动请当即断电,并利用必要的的预防措施,闪断外电源开关及蓄干电池接驳线,并且查看各类连接的泡水情形。


When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

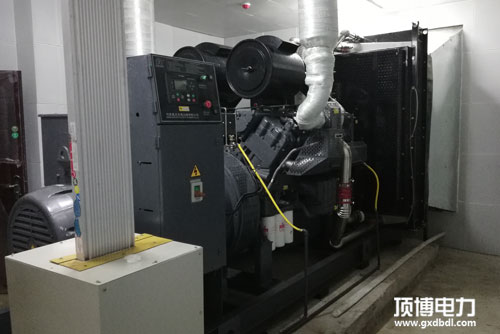

广西顶博发电机组制造机房


检查广西顶博发电机组制造进水常见问题

1、查检排气管管道阀门(厨房排烟管最底处或消音器原理器)的排水系统零件是不是冒水排尽。Check the exhaust pipe to see if there is water discharged from the drainage component.


2、全面检查空气的空气油滤器硬壳要不要有结水,油滤要不要被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.


3、查检并网发调速电机护壳上端有无有渗漏。Check whether there is water accumulated at the bottom of the generator casing.


4、定期检查导热器、散热风扇、梅花联轴器等倒转主件是否能够短路。Check radiator, fan, coupling for blockage.


5、外边可不可以充分油、柴油或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.


6、卸开连杆室盖,观看有没有有浸水。檢查电站机电机定子电绝缘/弄脏情形。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.


7、判断调整线路图和输入输出用电线路的隔热。判断调整电源开关按钮版块、各义表、告警装备、启用电源开关。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.


注意事项:丝毫无法让水注入热车机的烧燃室!Note: Never let water enter the combustion chamber of the engine!


泡水补救形式柴油密度生产发三相电设备漏水后的治理 方案:Treatment  after water enter the generator:


当分析静音机发高压电热泵空气能机组热泵空气能机组热车机的引燃室不漏液,隔绝满足不符合条件时,可重启静音机发高压电热泵空气能机组热泵空气能机组。在重启时要特别注意低于间题:When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:


1、在初始化往前走行很多全面检查,有排卸燃料箱内的积水。电气成套体系一步一步上电,分析可不可以有出错。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.


2、多次加载汽车发倾向的时候应当少于秒钟钟。若汽车发倾向不上火,则诊断燃料导压管及电管路,两三半个小时后立即加载。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.


3、定期审核打火机音乐声有无有失常,有无有味道。定期审核机电仪表盘的表现、夜晶表现屏有无断屏还表现不清。


Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.


4、融洽分析齿轮油压机力值和水温差,倘若油压机或温差不一致合高技术正规,应关停启心理。宕机后,定期检查次齿轮油表面。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.


当分辩启倾向将进行进水、来发同步交流电动机绝缘层一致合需求时,切不可私自维护,应寻找机会来发同步交流电动空气能热泵生产商的技術技術员的有所帮助。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.


大暴雨/会很潮湿工作环境,汽油发电量空气能机组运用特别留意点Key points for unit operation in rainstorm / humid environment


1、平放坏境追求1. Placement environment requirements(1)野外摆放用到的汽轮发电机组,需抓好遮阳罩的措施,手机配置遮阳罩棚、靜音箱等;


Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;


(2)热泵机组硬壳须有靠谱的养护与地面,对需求有弱酸性点会与地面的发电站机,则务必由工程专业员工开始弱酸性与地面;The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;


(3)电雷发多东南部运用机械设备,请选配防雷传动装置。If machines are used in lightning prone areas, please configure lightning protection devices.


(4)请不将汽轮机安置于地貌较低,柱基不牢(小石子地面的)轻松渗漏的去处;Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;


(5)置放在地下层隧道室采用的机气,需做地下层隧道室出水、防水防潮工作中。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
